Video |
|
Routing |
|
|
DXP 44 HDMI |
4 x 4 matrix |
|
DXP 48 HDMI |
4 x 8 matrix |
|
DXP 84 HDMI |
8 x 4 matrix |
|

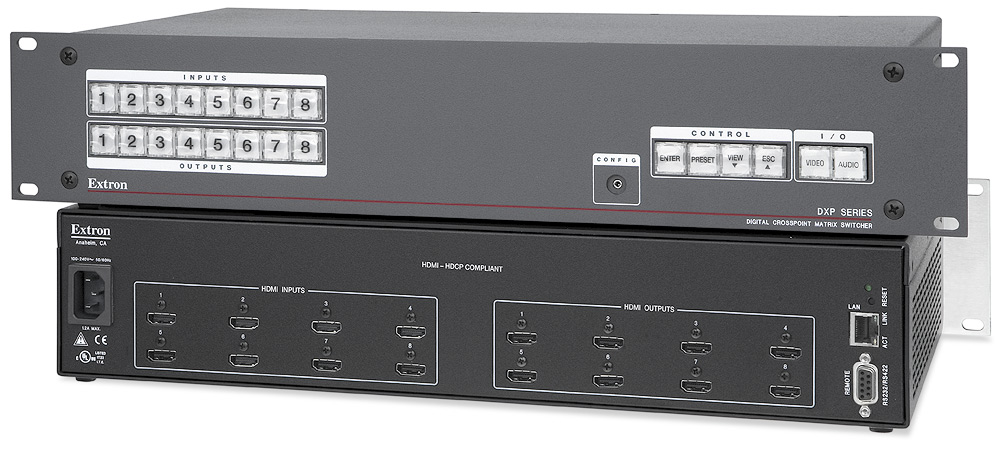

DXP 88 HDMI |
8 x 8 matrix |
|
Signal type |
TMDS digital RGB and single-link DVI digital video signals are supported |
|
Digital video |
RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI), actively buffered (supports all single-link DVI and HDMI [if using an optional adapter] standards from 640x480 @ 60 Hz to 1600x1200 @ 60 Hz computer video and HDTV 480p, 720p, 1080i, 1080p) |
|
NOTE |
The DXP HDMI Series switchers are compatible with HDMI 1.3. |
|
|
Digital audio |
Supports HDMI audio transmitted through the RGB and Y, Cr, Cb lines, actively buffered. |
|
EDID and DDC |
Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered. |
|
HDCP |
Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI 1.3 standards |
|
HPD |
Supports hot plug detection (HPD) of display as a pass-through signal. |
|
Gain |
Unity |
|
Resolution range |
Up to 1080p (HDTV) or 1920x1200 (the highest resolution of the single-link DVI standard) @ 60 Hz |
|
Maximum data rate |
6.75 Gbps (2.25 Gbps per color) |
|
Maximum pixel clock |
225 MHz |
|
Standards |
DVI 1.0, HDMI 1.3 |
|
Switching speed |
200 ns, max. |
|
|
|
Video input |
|
Number/signal type |
4 or 8 (depending on model) digital RGB (TMDS) HDMI (or single-link DVI-D*) |
|
Connectors |
4 or 8 female HDMI type A (digital only) |
|
Nominal level |
|
|
Digital video |
1.2 Vp-p |
|
DDC (Display Data Channel) |
5.0 Vp-p (TTL) |
|
Minimum/maximum level |
0.5 V to 1.0 Vp-p with no offset |
|
Impedance |
100 ohms |
|
Return loss |
<-15 dB @ 1 MHz to 1.5 GHz |
|
TDR rise time (10%-90%) |
75 ps |
|
Equalization |
Automatic |
|
Input cable length |
>100' (30 m) at 1920x1200 @ 48, 50, or 60 Hz; or 1080p; 8 bit color |
|
NOTE |
The transmission distance varies depending on the signal resolution and on the type of cable, graphic card, and display used in the system. |
|
|
|
|
Video output |
|
Number/signal type |
4 or 8 (depending on model) digital RGB |
|
Connectors |
4 or 8 female HDMI type A |
|
Nominal level |
1.2 Vp-p |
|
Minimum/maximum level(s) |
0.5 V to 1.0 Vp-p with no offset (follows input) |
|
Impedance |
100 ohms |
|
Return loss |
<-15 dB @ 1 MHz to 1.5 GHz |
|
DC offset |
±500 mV maximum with input at 0 offset |
|
Rise and fall time (20-80%) |
0.6 ns |
|
Re-clocking |
Automatic |
|
Peripheral device power |
250 mA per output |
|
|
|
Control/remote — switcher |
|
Serial control port |
(1) RS-232, 9-pin female D connector
(1) RS-232, front panel 2.5 mm mini stereo jack |
|
Baud rate and protocol |
9600 to 115200 baud, 9600 baud (default), 8 data bits, 1 stop bit, no parity |
|
Serial control pin configurations |
|
|
9-pin D connector |
2 = Tx, 3 = Rx, 5 = GND |
|
Mini stereo jack |
Tip = Tx, ring = Rx, sleeve = GND |
|
Ethernet control port |
(1) RJ-45 female connector |
|
Ethernet data rate |
10/100Base-T, half/full duplex with autodetect |
|
Ethernet protocol |
ARP, ICMP (ping), IP, TCP, DHCP, HTTP, Telnet |
|
Default settings |
Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off |
|
Program control |
Extron control/configuration program for Windows?
Extron Simple Instruction Set (SIS?)
Microsoft? Internet Explorer? ver. 6 or higher, Telnet |
|
|
|
General |
|
Power |
100 VAC to 240 VAC, 50-60 Hz, internal; fully loaded 8 x 8 unit |
|
115 VAC, 60 Hz |
48 watts |
|
240 VAC, 50 Hz |
48 watts |
|
Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
|
Cooling |
Fan, air flows right to left (as viewed from front) |
|
Thermal dissipation, full load |
|
|
115 VAC, 60 Hz |
129.7 BTU/hr |
|
240 VAC, 50 Hz |
126.3 BTU/hr |
|
Mounting |
|
|
Rack mount |
Yes, 2U high |
|
Enclosure type |
Metal |
|
Enclosure dimensions |
3.5" H x 17.5" W x 12.0" D (2U high, full rack wide)
(8.9 cm H x 44.4 cm W x 30.5 cm D)
(Depth excludes connectors. Width excludes integrated rack ears.) |
|
Product weight |
10.0 lbs (4.5 kg) |
|
Shipping weight |
15 lbs (7 kg) |
|
Vibration |
ISTA 1A in carton (International Safe Transit Association) |
|
Regulatory compliance |
|
|
Safety |
CE, c-UL, UL |
|
Compliances |
CE, C-tick, FCC Class A, ICES, VCCI |
|
MTBF |
30,000 hours |
|
Warranty |
3 years parts and labor |
