預覽和節目輸出功能

對復合視頻、S-視頻、分量視頻、RGBHV 和 HDTV 信號進行解析度轉換

多種轉換效果，包括擦拭、溶解或快切

多徽標插入

PIP – 畫中畫

字幕鍵入

型號

產品說明

產品編號

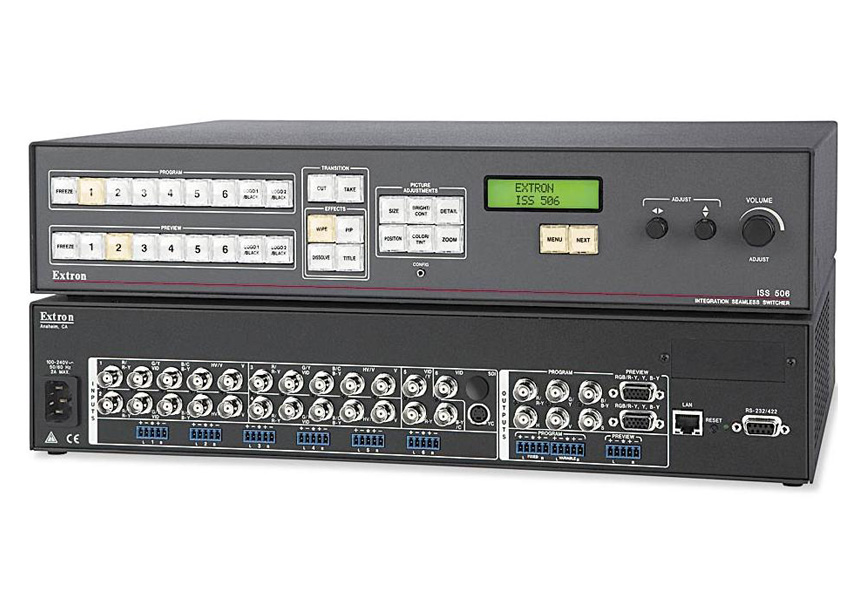

ISS 506

標準型號

60-742-01

ISS 506 SC

帶掃描轉換輸出

60-742-03

ISS 506 DI/DVI

帶 SDI/HD-SDI 輸入，DVI-D 輸出

60-742-12

ISS 506 DI/SC

帶 SDI/HD-SDI 輸入，掃描轉換輸出

60-742-13

ISS 506 DI/HD-SDI

帶 SDI/HD-SDI 輸入和 HD-SDI 輸出

60-742-14

Video input

   Number/signal type

4 RGBHV, RGBS, RGsB, RGBcvS, component video (interlaced or progressive), S-video, composite video
1 component video (interlaced), S-video, composite video
1 S-video, composite video, or optional digital component video (SDI or HDSDI)

   Connectors

4 x 5 female BNC
1 x 3 female BNC, 1 female BNC, 1 female 4-pin mini DIN
1 optional BNC for SDI/HDSDI

   Nominal level

1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video

   Minimum/maximum levels

Analog: 0.0 V to 2.0 Vp-p with no offset at unity gain

   Impedance

75 ohms

   Horizontal frequency

Autoscan 15 kHz to 100 kHz

   Vertical frequency

Autoscan 50 Hz to 120 Hz

   Resolution range

Autoscan 640x480 to 1920x1200, 480p, 576p, 720p, 1080i, 1080p

   Return loss

-30 dB @ 5 MHz

   DC offset (max. allowable)

0.5 V

Video processing

   Encoder (for scan converted output)

10 bit digital

   Digital sampling (for program and preview outputs)

24 bit, 8 bits per color; 13.5 MHz standard (video), 194 MHz standard (RGB)

   Colors (for program and preview outputs)

16.78 million

   Horizontal filtering (for scan converted output)

3 levels

   Vertical filtering (for scan converted output)

3 levels

   Encoder filtering (for scan converted output)

3 levels

Video output

   Number/signal type

2 scaled RGBHV, RGBS, RGsB, HD YUV component video program outputs
1 scaled RGBHV, RGBS, RGsB, HD YUV component video preview output
1 optional DVI, HDSDI (SMPTE 292 M), or scan converted output (interlaced component video, S-video, composite video)

   Connectors

(2) 15-pin HD (1 for preview output, 1 for program output)
5 BNC female (for program output)

   Nominal level

1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video

   Minimum/maximum levels

0.0 V to 0.7 Vp-p (RGB)
0.0 V to 1.0 Vp-p (component video, G of RGsB)

   Impedance

75 ohms

   Scaled resolution

640x480^1,2,3,4,5,6, 800x600^1,2,3,4,5,6, 852x480^1,2,3,4,5, 1024x768^1,2,3,4, 1024x852^1,2,3,4,1024x1024^1,2,3, 1280x768^1,2,3,4, 1280x1024^1,2,3, 1360x765^1,2,3, 1365x768^1,2,3, 1365x1024^1,2, 1366x768^1,2,3, 1400x1050^1,2, 1600x1200^1,2, HDTV 480p^2,10, 576p^1,5, 720p^1,2,8,9,10, 1080p^1,2,7,8,9,10, and 1080i^1,2,10
1864x1050^1,2, 1280x800^1,2,3, 1440x900^1,2,3, 1680x1050^1,2, 1080p Sharp², and 1920x1200²*
¹ = at 50 Hz ; ² = at 60 Hz; ³ = at 72 Hz ; ⁴ = 96 Hz; ⁵ = 100 Hz; ⁶ = 120 Hz;
⁷ = 24 Hz; ⁸ = 25 Hz; ⁹ = 30 Hz; ¹⁰ = 59.94 Hz

* 1920x1200 is available only on units shipped after first quarter of 2009.

   Return loss

-30 dB @ 5 MHz

   DC offset

±25 mV with input at 0 offset (except for RGsB and component video)

   Switching type

Seamless switching (cut or dissolve)

Sync

   Input type

Autodetect (RGBHV, RGBS, RGsB), and component

   Output type

RGBHV, RGBS, RGsB
Tri-level on Y, R-Y, B-Y channels of component video or bi-level on Y channel of component video (selectable)

   Standards

NTSC 3.58, NTSC 4.43, PAL, SECAM
Optional SDI/HDSDI input: SMPTE 259M-C, SMPTE 292M

   Input level

2.75 V to 5.0 Vp-p for RGBHV or RGBS
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB

   Output level

TTL: 5.0 V p-p, unterminated

   Input impedance

510 ohms, vertical; 75 ohms, horizontal

   Output impedance

75 ohms

   Max. input voltage

5.0 Vp-p

   Polarity

Positive or negative (selectable)

Audio

   Gain

Unbalanced output: -6 dB; balanced output: 0 dB

   Frequency response

20 Hz to 20 kHz, ±0.05 dB

   THD + Noise

0.05% @ 1 kHz at +4 dBu and 0 dB gain

   S/N

>83 dB (typical) at maximum output (unweighted)

   Crosstalk

<-80 dB @ 1 kHz, fully loaded

   Stereo channel separation

>90 dB @ 1 kHz

   CMRR

>75 dB @ 1 kHz

Audio input

   Number/signal type

6 stereo, balanced/unbalanced

   Connectors

(6) 3.5 mm captive screw connectors, 5 pole

   Impedance

>10k ohms unbalanced/balanced, DC coupled

   Nominal level

+4 dBu (1.23 Vrms), -10 dBV (316 mVrms)

   Maximum level

+19.5 dBu, (balanced or unbalanced) at 1% THD+N

   Input gain adjustment

–18 dB to +24 dB

   Audio delay compensation (automatic)

20 ms when scaling RGB computer video or HDTV component video
75 ms when scaling NTSC component video, S-video, or composite video
90 ms when scaling PAL component video, S-video, or composite video

Audio output

   Number/signal typ, e

3 stereo, balanced/unbalanced (2 program, 1 preview)

   Connectors

(3) 3.5 mm captive screw connector, 5 pole

   Impedance

50 ohms unbalanced, 100 ohms balanced

   Gain error

±0.5 dB channel to channel

   Maximum level (Hi-Z)

>+21 dBu, balanced or unbalanced at 1% THD+N

   Maximum level (600 ohm)

>+15 dBm, balanced or unbalanced at 1% THD+N

Control/remote — switcher

   Serial control ports

1 RS-232/RS-422: 1 rear panel 9-pin female D connector
1 RS-232: 1 front panel 2.5 mm mini stereo jack

   Baud rate and protocol

9600 (default), 19200, 38400, 115200 baud; 8 data bits; 1 stop bit; no parity

   Serial control pin configurations

      9-pin female D connector

RS-232: 2 = Tx, 3 = Rx, 5 = GND
RS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+

      Mini stereo jack

RS-232: tip = Tx, ring = Rx, sleeve = GND

   Ethernet control port

1 RJ-45 female connector

   Ethernet data rate

10/100Base-T, half/full duplex with autodetect

   Ethernet protocol

ARP, ICMP (ping), IP, TCP, UDP, DHCP, HTTP, SMTP, Telnet

   Ethernet default settings

Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off

   Web server

Up to 200 simultaneous sessions
16 MB nonvolatile user memory

   Program control

Extron's control/configuration program for Windows?
Extron's Simple Instruction Set (SIS^?)
Microsoft^? Internet Explorer? ver. 6 or higher, Netscape? Navigator?, Telnet

General

   Power

100 VAC to 240 VAC, 50-60 Hz, 45 watts, internal

   Temperature/humidity

Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

   Mounting

      Rack mount

Yes, with included brackets

   Enclosure type

Metal

   Enclosure dimensions

3.5" H x 17.5" W x 12.0" D (2U high, full rack wide)
(8.9 cm H x 44.4 cm W x 30.5 cm D)
(Depth excludes connectors and knobs.  Width excludes rack ears.)

   Product weight

8.5 lbs (3.9 kg)

   Shipping weight

18 lbs (9 kg)

   DIM weight

      USA/Canada

15 lbs (7 kg)

      International

18 lbs (8 kg)

   Vibration

ISTA 1A in carton (International Safe Transit Association)

   Regulatory compliance

      Safety

CE, CUL, UL

      EMI/EMC

CE, C-tick, FCC Class A, ICES, VCCI

   MTBF

30,000 hours

   Warranty

3 years parts and labor
